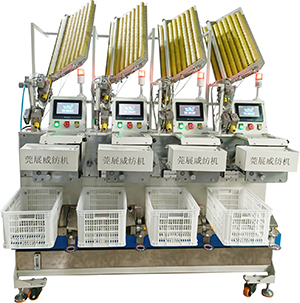

产品型号：ZW021A
产品规格：
产品尺寸：1900mmx1300mmx2120mm
ZW021A全自动高速绕线机 适合卷绕缝纫线、绣花线、尼龙线、高强线等线材。本机采用自动上管和络线系统。既有电脑自动计长、变频调速、槽筒式导线等结构。成型好，效率高，操作方便。安全可靠，使用面广等特性。 | ZW021A automatic high speed winding machine Suitable for winding sewing thread, embroidery thread, nylon thread, high strength thread and so on. This machine adopts automatic tube and winding system. There are computer automatic measuring length, frequency conversion speed regulation, trough type wire and other structures. Good molding, high efficiency, easy to operate. Safe and reliable, use a wide range of features. |
基础配置 每台机器配有一个中央拉制系统包括 -触摸屏 -中央参数设置 -单锭参数设置 电子计长系统 断纱满筒自停系统 电子探纱器 即时数码张力系统 适宜人机操作界面 两用式设计 循环式自动上油装置 自动换管装置 | Basic configuration A central control system includes -touch screen -Central settings -Single spindle settings Digital length measuring system Yarmn breakage/fullpackage detection Electronic yarn detector Real time digital tension system Suitable man-machine operation Dual purpose design Circulating automatic oiling device Automatic pipe changing device |
性能特点Performance characteristics a 自动送管和络线系统，自动化程度高 a 自动送管，无管自动停机 a 光电式断线检测，感应灵敏 a 自动换管动作快速、稳定 a 电脑计长精确度高 a 络筒采用槽筒式导线系统，速度快、声音小 a 循环式上油系统，油面高度稳定，油轮速度可任意设定，搭配稳定线速度使上油均匀。a 可选配插线装置 a 可选配温控加油装置 | a Automatic pipe feeding and winding system, High degree of automation a Autom atic pipe feeding, Automatic shutdownwithout pipe a Photoelectric break detection,Inductive sensitivity a Fast and stable automatic tube changeo a High accuracy of computer length measurementa a The winding adopts grooved wire system, whichis fast and low in sound. a Circulation type oiling system, the oilevel is highlystable, the tanker speed can be set arbitrarily, andthe stable line speed can make the oiling evenly. a Optional plug-in devicea a Optional temperature control refueling device |
| 技术参数TE CHNOLOGY PARAMEERS | |
| 线速度 可达1000m/min(取决于纱线本身工艺参数)Linear speed Upto 1000m/min (depending on theprocess paramelers oftheyam isel) | |
| 卷取管形状 锥形线管Y管 | Coling tube shape ConicalLine Tube Y Tube |
| 锭子数呈 4锭 | Number of spindles 4ingots |
| 驱动 单锭电机控制系统 | Drive Single Spindle Motor Contol System |
| 控制方 电脑控制 | Controlmethod computer control |
| 空气压力 0.3Mpa | Airpressure 0.3Mpa |
| 电源功率 220v(380v)12kW | Power 220v(380v)12kW |
| 机器尺寸 1900mmx1300mmx2120mm | Machine size 1900mmx1300mmx2120mm |
| 机械重量 460KGS | Mechanical weight 460KGS |
联系人：王先生
联系电话：137-2999-6693
联系邮箱：1425979684@qq.com
公司名称：东莞展威纺织机械有限公司
公司地址：广东省东莞市常平镇金美金兴三路3号2栋101室
